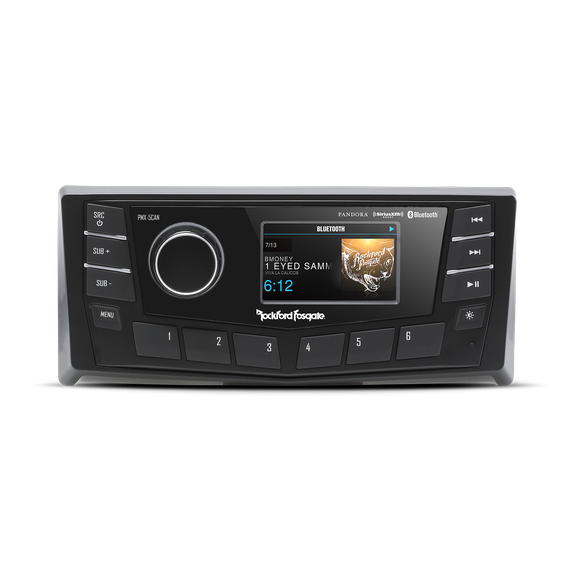

Arctic Cat Prowler / Wildcat Punch Marine AM/FM/WB Multi-Zone Digital Media Receiver 2.7 Display with CANbus by Rockford

The PMX-5CAN digital media receiver is designed for marine and motorsports systems.

The PMX-5CAN features a 2.7"full color TFT display for optimum viewing - even in full sun - that is optically wet bonded to prevent any dust or moisture penetration. It is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such as SiriusXM and Pandora capabilities, Bluetooth audio steaming with album art support for Apple and Android products and true 2 zone/2 source control, this unit becomes a true command center of any system.

Output flexibility comes a 4x50W @ 2ohm internal amplifier or dual zone output RCA's allowing the addition of after-market amplifiers for more power and output. Add in the EEPROM memory system, custom GUI interface and wired remote expansion capabilities and you have the only media receiver you'll ever need. The PMX-5CAN also features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using the PMX-CAN adaptor (see Accessories tab.)

Punch Marine Grade Media Receiver With 2.3" Dot Matrix Display Features:

• Pandora Internet Radio
• SiriusXM-Ready
• Stainless Steel Rear Chassis
• ISO8846/SAE J1171 Ignition Protection Certified
• Low Voltage Warning Alert
• AUX and USB Inputs with USB Charging
• Multi-region radio frequencies
• FCC, CE, IC, and C-Tick Certified
• A2DP and AVRCP Bluetooth Wireless Streaming
• Steering Wheel Control Interface Compatible
• IPX6 Marine Grade for prevention of water intrusion
• 7-Band Graphic EQ
• 2.7" full color display w/ auto dimming back lightning
• Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
• Independent Subwoofer Level Control
• On Board Punch EQ Control
• Zone Control: 2 Zone / 2 Source (F/R/S + F)
• AM/FM/WB Tuner
• Compatible with a Multi-Function Display using NMEA2K entertainment standard.
• CANbus (Controller Area Network) compatible. Requires PMX-CAN accessory
• Antenna not included

Specifications

• Display Size-2.7" Color TFT
• Frequency Response-20 Hz - 20 kHz
• Device Type-Digital-Media Receiver
• Pandora Internet Radio-Yes
• SiriusXM-Ready-Yes(Requires SXV300)
• Speaker Impedance-2-Ohms
• Fuse Rating-15 A
• Multi-Zone/Multi-Source-Yes
• Speaker Outputs-Yes
• Apple®/Android™ Compatible-Yes

TUNER

• AUX Input-Yes
• USB Charging-Yes
• Clock-No
• Steering Wheel Control Ready-Yes
• FM TUNER(Frequency Range)-87.9-107.9 MHz
• TUNER(Number Of Presets)-18 FM / 12 AM / 6 WB
• FM TUNER(Sensitivity)-8 dB
• AM TUNER(Frequency Range)-530 kHz - 1710 kHz
• AM TUNER(Usable Sensitivity)-40 dB
• Dimensions (HxWxD)- Width 8" (20.3cm), Face Depth 1.5" (3.8cm), Mount Depth 7.1" (18.2cm), Height 3.5" (8.9cm), Chassis to Face Top 0.9" (2.3cm), Chassis to Face Bottom 0.59" (1.5cm)
